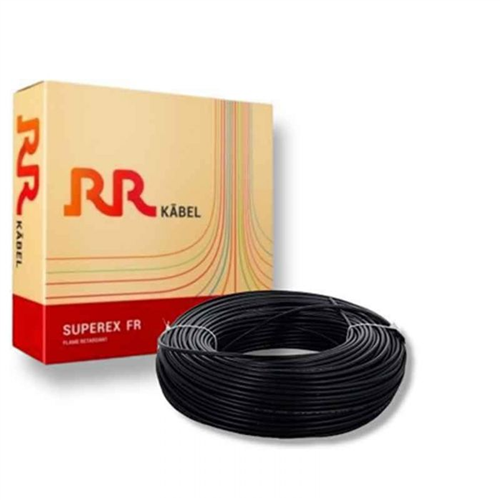

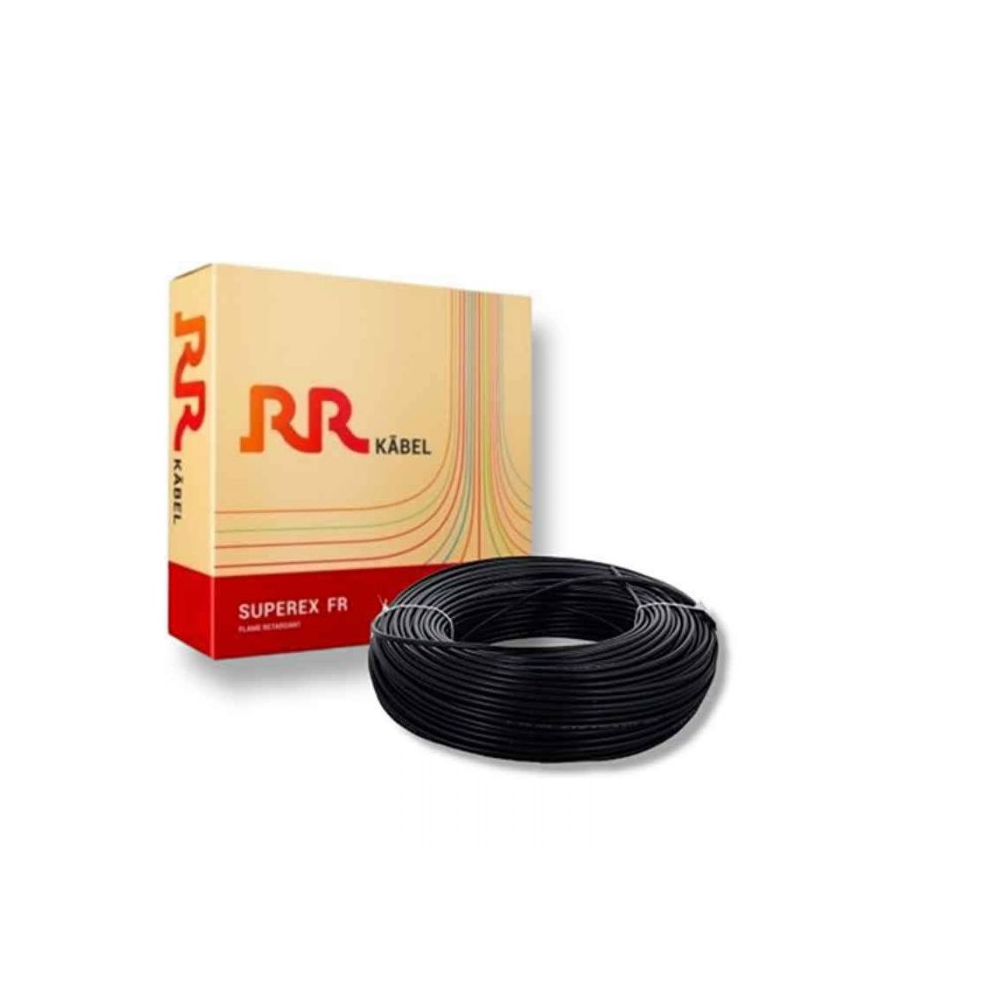

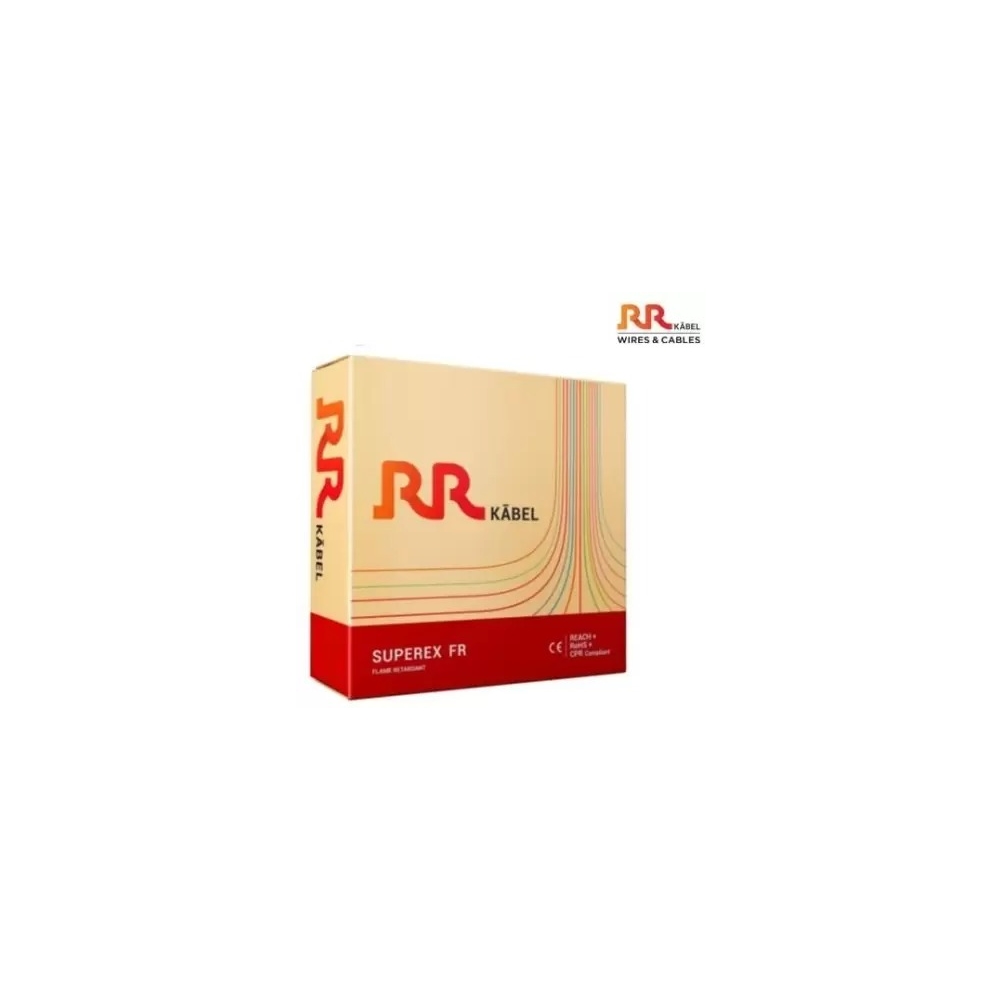

RR KABEL BLACK SUPEREX FR 1.0 SQ. MM

BLACK 1.0

  Be the first to write a Review

India’s 1st REACH and RoHS Compliant Cable | Flame Retardant Cable.

Application

Suitable for wiring in all types of residential and commercial infrastructure, where fire and electrical safety is utmost important.

  DELIVERY : 4-5 working days

` 2,045
inclusive of all taxes

GOODS ONCE SOLD WILL NOT BE EXCHANGED OR REPLACED AT ANY CIRCUMSTANCES

Contact for Bulk Inquiry : sales@bicw.co.in

Specifications of RR KABEL BLACK SUPEREX FR 1.0 SQ. MM

Technical Data

Approvals: IS 694 marked, FIA/TAC

Voltage Grade: Up to and including 1100V

Conductor: Thin strands of electrolytic copper are multi-drawn for uniformity of resistance, dimension and flexibility. The strands are twisted with high precision to impart circularity for the conductor

Insulation: Specially formulated flame retardant PVC insulation is used. The FR property retards the propagation of flame without compromising safety

Insulation Conformity: IS 5831, Type A/D FR 70°C

Colours: Red, yellow, blue, black, green, grey & white

Marking: The cables are printed with marking of ‘SUPEREX FR’ from 0.75 Sq. mm to 6 Sq. mm & “RR KABEL FR” for all other sizes.

Packing: 90 mtr. coil is packed in protective cartons upto size 6 Sq. mm. Project packing of 180 mtr. also available.
