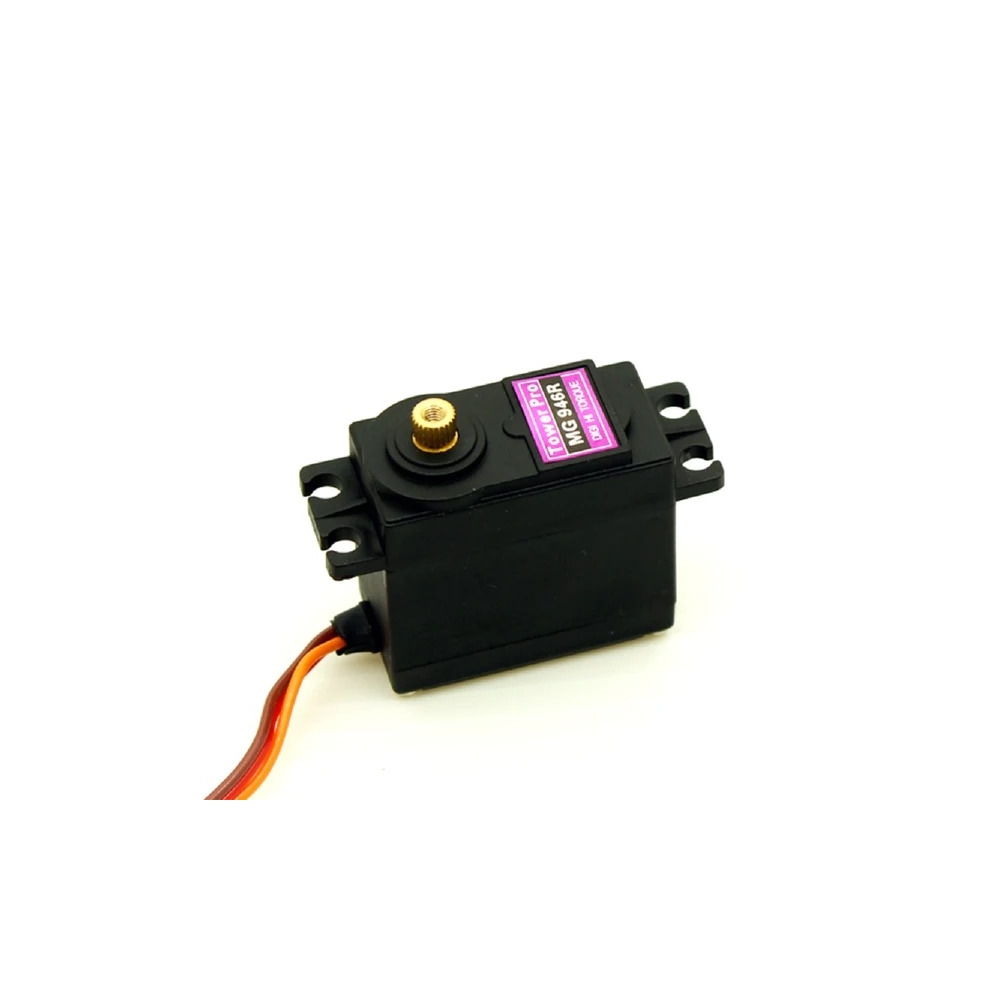

MG946R Digital High Torque Metal Gear Servo Motor

MG946R

  Be the first to write a Review

MG946R Digital High Torque Metal Gear Servo Motor
MG946R Metal Gear Digital High Torque Servo is an upgraded version of TowerPro MG945. Its new PCB and IC control system which makes it more accurate. Its internal gearing and motor are also upgraded to improve dead bandwidth and centering. MG946R is for 1/8 buggy monster and many RC model. The product configure table is provided in the attachments.

Wire Description

  • Red – Positive
  • Brown – Negative
  • Orange – Signal

  DELIVERY : 4-5 working days

` 425
inclusive of all taxes

GOODS ONCE SOLD WILL NOT BE EXCHANGED OR REPLACED AT ANY CIRCUMSTANCES

Contact for Bulk Inquiry : sales@bicw.co.in

Specifications of MG946R Digital High Torque Metal Gear Servo Motor

Specification

  • Operating Voltage: 4.8-6.6 V
  • Angle of rotation: 180 degrees
  • Temperature Range: 0- 55º
  • Servo wire length: 32cm
  • Pulse cycle: 1 mS
  • Servo Plug: JR (Fits JR and Futaba)
  • Gear Type: Metal gear
  • Power Supply: Through External Adapter
  • Servo arms & screws included and fit with Futaba servo arm
  • Included Universal “S” type connector that fits most receivers, including Futaba, JR, Hitec ,GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum.
  • Package included:
  • 1 x MG946R Digital High Torque Metal Gear Servo Motor
