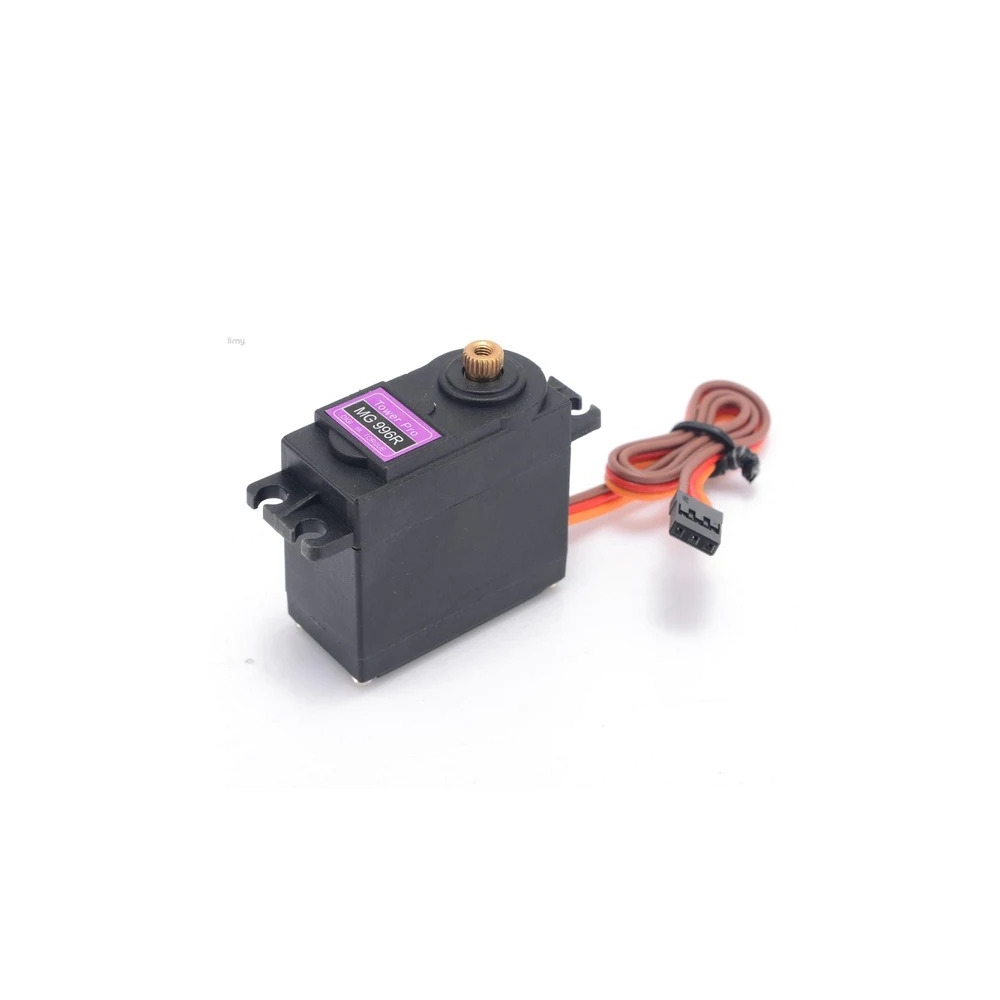

MG996R Digital Metal Gear High Torque Servo Motor (360 Degree Rotation)

MG996R

  Be the first to write a Review

MG996R Digital Metal Gear High Torque Servo Motor (360 Degree Rotation)
This Tower Pro MG996R Digital Metal Gear High Torque Servo Motor (360 Degree Rotation) features metal gearing resulting in extra high 10kg stalling torque in a tiny package. The MG996R is essentially an upgraded version of the famous MG995 servo, and features upgraded shock- roofing and a redesigned PCB and IC control system that make it much more accurate than its predecessor. The gearing and motor have also been upgraded to improve dead band with and centering. The unit comes complete with 30cm wire and 3 pin ‘S’ type female header connector that fits most receivers, including Futaba, JR, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum and Hitec.

Wire Configuration of Tower Pro MG996R Digital Metal Gear High Torque Servo Motor (360 Degree Rotation):-

  • RED – Positive
  • Brown – Negative
  • Orange – Signal (PWM)

  DELIVERY : 4-5 working days

Enquire Now

GOODS ONCE SOLD WILL NOT BE EXCHANGED OR REPLACED AT ANY CIRCUMSTANCES

Contact for Bulk Inquiry : sales@bicw.co.in

Specifications of MG996R Digital Metal Gear High Torque Servo Motor (360 Degree Rotation)

Specifications of Tower Pro MG996R Digital Metal Gear High Torque Servo Motor (360 Degree Rotation) :-

  • Operating voltage: 4.8 V - 7.2 V
  • Running Current 500 mA – 900 mA (6V)
  • Stall Current 2.5 A (6V)
  • Temperature range: 0 ºC – 55 ºC
  • Control System: Analog
  • Operating Angle: 360degree
  • Required Pulse: 900us-2100us
  • Direction: CCW
  • Operating speed: 0.17 s/60º (4.8 V), 0.14 s/60º (6 V)
  • Dead band width: 5 μs
  • Wire length: 30cm
  • Connector: 3 pin 'S' type female header
  • Weight: 55 g
  • Dimension: 40.7 x 19.7 x 42.9 mm approx.
  • Stall torque: 9.8 kgf·cm (4.8 V ), 11 kgf·cm (6 V)
  • Stable and shock proof double ball bearing design

Package included:

  • 1 x MG996R Digital Metal Gear High Torque Servo Motor (360 Degree Rotation)
  • Product Images are shown for illustrative purposes, may differ from actual product
